A simple and low-cost approach for the synthesis and fabrication of ZnO nanosheet-based nanogenerator for energy harvesting and sensing

Recently, most of the research focused on energy harvesting due to environmental issues, carbon emissions, and the limited availability of fossil fuels [1, 2]. To address these difficulties, a new research field known as 'nanogenerators' has emerged, which uses piezoelectric materials to harness mechanical energy [3–5]. The ease with which mechanical energy could be converted to electrical energy utilizing a well-known piezoelectric property makes it even more attractive and potential. The main advantages of mechanical energy are widely and easily available everywhere in nature at all times. Nanogenerators have been used as actuators, sensors, photodetectors, self-powered devices [6–9]. Among all piezoelectric materials, zinc oxide (ZnO) is selected in the current work to fabricate the nanogenerator. ZnO has several advantages viz. non-toxicity, environmental friendly, biocompatibility, and excellent optical and electrical properties [10, 11]. Synthesis of ZnO nanostructures is easy, established, and involves a simple process compared to all other materials synthesis. Among different synthesis methods, the hydrothermal synthesis of ZnO nanosheets is simple, inexpensive, single-step process, and low-temperature process [12, 13]. The obtained nanosheets exhibited high mechanical durability as well [14]. Hydrothermal synthesis is adapted in this report for the synthesis of ZnO nanosheets.

Hydrothermal synthesis of ZnO nanosheets is a well-established method, and it deals with synthesis at a temperature less than 100 °C using a hot air oven in most of the literature [15]. A hot plate was used in the current work instead of a hot air oven to provide growth temperature to the growth precursor solution. The cost of the process was reduced appreciably by adapting this methodology. To the best of our knowledge, the synthesis of ZnO nanosheets using a hot plate has not been investigated so far, which forms the novelty of this paper. The novelty of the paper lies in the use of a low-cost hot plate for the ZnO nanosheets synthesis. It is a simple technique to synthesize nanostructures by directly heating of growth solution at the desired temperature. The hot plate-assisted hydrothermal method can be easily implemented for mass production of ZnO nanosheets films and larger area films for commercial applications. The main advantages of this new method are simple, low cost, rapid growth, catalyst-free, single-step synthesis.

In this work, we report a cost-effective and straightforward method to synthesize ZnO nanosheets using the hot plate-assisted hydrothermal method. Further nanogenerator was fabricated for mechanical energy harvesting and characterized for its electrical characteristics and sensing applications.

2.1. ZnO nanosheets synthesis and characterization

The ZnO nanosheets film was synthesized on Al substrates using the hot plate method, as shown in the schematic diagram of figure 1(a). In the first instance, the aluminium substrates were ultrasonically cleaned with acetone and deionized (DI) water for 10 min, then dried under a hot-air blower. Initially, zinc nitrate $\left(Zn{\left(NO\right)}_{3}\right)\,.\,6{H}_{2}o,$ 50mM) and hexamethylenetetramine (${C}_{6}{H}_{12}{N}_{4},$ HMTA, 50mM) were dissolved in 100ml of DI water and stirred for 10 min separately at room temperature. These two solutions were mixed in another beaker and stirred till the combined solution became transparent. One side of the aluminium substrate was sealed with Kapton tape and suspended in the growth solution, as shown in figures 1(b)–(c). The beaker containing the growth solution was covered with aluminium foil. A small opening was made to insert a thermocouple, as shown in figure 1 (d), for continuously monitoring the temperature. This small opening in the aluminium foil has been made such that it can be closed or opened depending on the requirement. Before performing synthesis, the growth precursor solution temperature was calibrated for 50 °C, 60 °C, 70 °C, 85 °C, 95 °C against applied hot plate temperature by inserting a thermocouple in the growth precursor solution. Finally, the beaker containing the growth precursor was kept over the hotplate at different growth temperatures for 4 h., ZnO-coated films on aluminium substrates were taken from the solution after 4 h of growth, rinsed with DI water, and dried with a hot-air blower.

Zoom In Zoom Out Reset image size

Further, ZnO nanosheets growth was performed at different growth durations of 1, 2, 3, 4, 5, 6 h at a one selected optimum growth temperature of 85 °C. Several characterization techniques were performed to study the ZnO films. The ZnO films surface morphology and composition were analysed using a scanning electron microscopy (SEM, VEGA3 TESCAN) attached with energy dispersive spectroscopy (EDS). The crystallinity of the films was checked using by x-ray diffraction (XRD, Bruker D8) technique. The microstructure and crystallinity of the individual ZnO nanosheets were done using a transmission electron microscope (TEM, Tecnai G2 20).

2.2. Nanogenerator fabrication and testing

The fabrication of the nanogenerator required two conducting electrodes and piezoelectric nanostructure film. The schematic of the device fabrication is shown in figure 2(a). The uncoated region of aluminium foil shown in figure 1(h) is act as the bottom electrode, and ITO coated PET sheet acts as the top electrode. The ITO coated PET sheet was placed over the ZnO nanosheet film without making any short-circuit with a bottom aluminium electrode. This sandwiched (PET:ITO/ZnO nanosheets/Al) structure is sealed with Kapton tape rigidly to make proper contacts and avoid the triboelectric effect. Two conducting wires were connected to both the electrodes, as shown in figure 2(b).

Zoom In Zoom Out Reset image size

The nanogenerator response against finger tapping was recorded using digital storage oscilloscope (Tektronix TBS1102) with the help of interfacing software (Tekvisa) to the computer. The response of the nanogenerator was recorded across different load resistances to find out the optimum power of the nanogenerator. Further, the response of the nanogenerator was also recorded for different finger-tapping pressures to apply the fabricated nanogenerator for practical pressure sensing applications.

Figures 3(a)–(d) shows the surface morphology of the ZnO thin films prepared at different growth temperatures of 50 °C, 60 °C, 70 °C, 85 °C, respectively. In all the cases, ZnO nanosheets are present all over the substrate except at 50 °C. These sheets are relatively vertically with respect to the substrate and also randomly distributed. Nanosheets are connected among them in a non-uniform way.

Zoom In Zoom Out Reset image size

The formation of the ZnO nanosheet is similar to the hydrothermal growth of ZnO nanosheets using a hot air oven [16]. Growth temperature plays a significant role in obtaining ZnO nanostructures. At lower temperatures of 50 °C and below, growth of nanosheets was not observed due to insufficient thermal energy for the decomposition of HMTA [16]. The uniform nanosheets growth was observed from 60 °C onwards and continued till 85 °C and above (See SI, S1 (available online at stacks.iop.org/ERX/3/035022/mmedia)). The differences observed in the morphology are due to the different densities and heights of the nanosheets, which in turn depends on the growth temperature. The growth rate of nanosheets increases with an increase in growth temperature as sufficient thermal energy is provided. Further, x-ray diffraction study confirms the polycrystalline nature of the ZnO nanosheet films (See SI, S2). Further, the purity of prepared films was studied by energy dispersive spectroscopy (EDS) and shown in figures 3(e)–(h). The EDS spectra of all the films show Zn, O, Al, and no other detected elements.

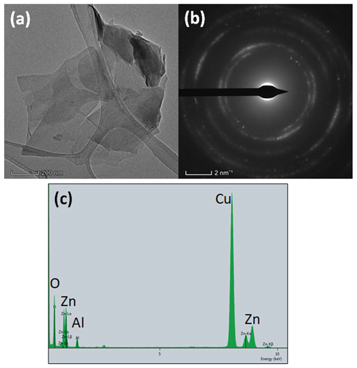

Figure 4(a) shows TEM image of the few nanosheets on the copper grid. The transparent nature of the nanosheets confirms the lesser thickness of the sample. Further, the selected area electron diffraction (SAED) pattern recorded on ZnO nanosheet exhibited the polycrystalline nature of the ZnO nanosheets. EDX spectrum recorded on the ZnO nanosheets further confirms the purity of the nanosheets.

Zoom In Zoom Out Reset image size

The response of the nanogenerators fabricated from the ZnO nanosheet films synthesized at different growth temperatures is shown in figure 5(a). This response was recorded at uniform finger tapping pressure on the device under open-circuit conditions. It is clear from figures 5(a)–(b) that output voltage is increased with an increase in the growth temperature and saturated above 85 °C. The change in the output voltage can be correlated to ZnO nanosheet deformation's magnitude under applied pressure. At lower temperatures films, minor deformations can be expected due to sheet heights were small. At higher growth temperature films, large deformation can be expected due to significant sheet heights. The saturation in the output voltage at 85 °C and above may be due to the similar thickness of the nanosheet films. Therefore, a growth temperature of 85 °C is found to be the optimum growth temperature for higher nanogenerator output voltage. Further, the nanogenerator made up of ZnO nanosheet films synthesized at 85 °C were used for all other studies in the subsequent sections.

Zoom In Zoom Out Reset image size

Figures 5(c)–(d) shows the typical response of the nanogenerators, which were fabricated with ZnO nanosheets films obtained at 85 °C for different growth durations of 1–6 h. Nanogenerator output is increasing with increasing growth duration and saturated for 4 h ZnO nanosheet films onwards. The ZnO nanosheets length increases with an increase of growth duration and saturates after a particular time. ZnO nanosheet length saturation with growth time due to consumption of all the $O{H}^{-}$ ions and $Z{n}^{+2}$ ions in the growth solution [17]. The saturation of ZnO nanosheets height was observed for 4 h of growth films and above. The height saturation of ZnO nanosheets results in the same deformation under applied pressure and produces the same output.

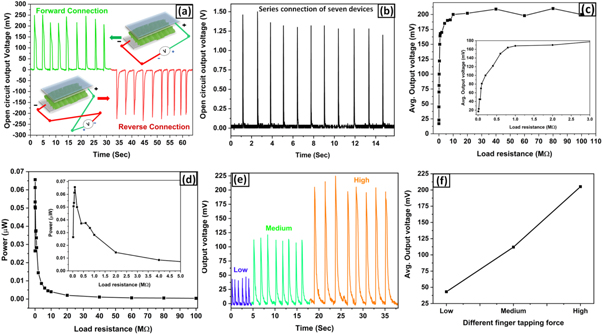

Figures 6(a)–(b) shows the response of nanogenerators under switching polarity test and linear superposition of voltage test. These tests were performed to confirm the output voltage generated from the nanogenerator alone, not by the oscilloscope or noise in the instrument [18–21]. In the switching polarity test: the forward and reverse connections were established by interchanging nanogenerator connections to the measuring device. The nanogenerator has shown exactly opposite voltage output signal in reverse connection with respect to the forward signal, as shown in figure 6(a) (See SI Video S1, S2). In both configurations, the output voltage of the nanogenerator is nearly the same. In the second test, the seven nanogenerator devices were connected in series to add up the voltages. The output voltages generated by the series-connected seven nanogenerators are shown in figure 6 (b), and an output voltage of ∼1.2 V being measured (See SI Video S3, S4). These tests confirmed the output voltage generated from nanogenerator alone not by the oscilloscope or noise in the instrument.

Zoom In Zoom Out Reset image size

Nanogenerator output voltage was recorded at different load resistances ranging from 10 KΩ to 100 MΩ under uniform hand tapping to measure the optimum output power. Figure 6(c) shows the variation of output voltage under different load resistances. With an increase in load resistance, the voltage increases and saturates at a value of approximately ∼200 mV. The saturated output voltage at higher resistance (>10 MΩ) is close to the open circuit output voltage. Inset of the figure 6(c) shows the magnified view of output voltage up to 3 MΩ load resistance. The nanogenerator output voltage behaviour with load resistance can be understood with the help of a simple equivalent model proposed by Z L Wang and other research groups in the literature [22–25] (See SI, S3). Now, we can assume the nanogenerator device is equivalent to a voltage source, and load resistance (R_L) connected parallel to the device to measure voltage. The voltage drops across the R_L increase until the optimum R_L and saturate at the theoretically infinite load resistance similar to open-circuit voltage [26]. The load resistance dependence of output voltage shows a similar trend as reported in the literature for piezoelectric nanogenerators made of different materials [26–30].

The output power $\left(Power=\tfrac{{V}^{2}}{\left({R}_{L\,}\right)}\right)$ of the nanogenerator with different load resistances was calculated and depicted in figure 6(d). The maximum output power of 65 nW was observed for the nanogenerator at 100 KΩ of load resistance ${R}_{L}.$ Inset of the figure 3(d) shows the magnified view of output power up to 5 MΩ load resistance. The output power characteristics of the nanogenerator can be understood from the maximum power transmission theorem [31]. It states that maximum power transmission occurs when the load resistance value equals the source internal resistance. In the present report, the peak in output power occurred under impendence matched conditions across a load resistor value ∼100 KΩ. The output power decreased with the load resistance values greater than 100 KΩ due to the saturated output voltage. The saturated output voltage at higher load resistance decreases the V²/R_L ratio (power) value. The dependence of output power with load resistance shows a similar trend as reported in the literature for piezoelectric nanogenerators made of different materials [32–34].

Further nanogenerator was explored for pressure sensing application. Figures 6(e)–(f) shows the response of the nanogenerator under different finger-tapping pressures of a low, medium, and high. The measured voltages are ∼40mV,110mV, and 200 mV for low, medium, and high tapping pressures. The amount of deformation in ZnO nanosheets rises as the pressure acting on the nanosheet increases, resulting in an increase in output voltage.

Further, the response of the nanogenerator tested over 1100 cycles is shown in figure 7(a). Figures 7(c)–(d) shows the magnified view of the nanogenerator response of figure 7(a). Further, the nanogenerator output voltage at different cycle numbers is plotted and shown in figure 7(d). It is concluded from figure 7, the nanogenerator has shown high stability and durability similar to the reported literature [35–37].

Zoom In Zoom Out Reset image size

In this work, hot plate-assisted hydrothermal growth of ZnO nanosheet networks is reported for the first time. A growth temperature of 85 °C and a growth duration of 4 h is optimum for uniform and dense ZnO nanosheets. XRD and TEM study confirms the crystallinity and purity of the ZnO nanosheet films. The nanogenerator is fabricated by placing ITO coated PET on the top of the ZnO nanosheets film. The switching polarity test and linear superposition of voltage tests confirms the generated voltage from nanogenerator. The proposed nanogenerator produced an open-circuit voltage and an instantaneous power of ∼220 mV and 65 nW. The proposed work demonstrated the ease of process, simplicity, and cost-effectiveness. Further, this nanogenerator performance can be improved with doping and composite ZnO films.
