Effect of pore morphology and surface roughness on wettability of porous titania films

Titanium tetrachloride (TiCl₄) and copolymer F38 (EO₄₃PO₁₄EO₄₃, M_w = 4700 g mol⁻¹, a BASF surfactant) were chosen as the titania source and structural template, respectively. The titanium sols were synthesized via a simple sol-gel route as previously reported [27] by introducing various weight ratios of F38, which were designated as 5, 10, 15, 20 and 25 wt%, respectively, calculated as W_F38/(W_F38 + W_TiCl4). The mole ratios of the final compositions in the titanium sols were 1 TiCl₄: x F38: 25 EtOH (anhydrous ethanol): 4 H₂O: 0.002 HCl, where x was in the range of 0 to 0.013 depending on the weight ratio of F38. The resulting sols were subsequently deposited on monocrystalline Si (100) substrates by spin-coating. After being dried in a vacuum at 100 °C for 2 h, the films were calcined at 500 °C for 4 h under pure nitrogen gas flow to decompose the polymeric template.

An ellipsometer (α-SE, J. A. Woollam Co., Inc. Ellipsometry Solution) was applied to measure the refractive indices (n) of the TiO₂ films under nitrogen atmosphere. All characteristic n values at 632.8 nm were calculated by fitting ellipsometric parameters ∆ and Ψ in the wavelength range of 380 ∼ 900 nm on the basis of the Cauchy model [28]. The refractive indices of six different spots on each film sample were measured and averaged. The mean thicknesses of the TiO₂ films obtained from ellipsometry measurements are 213.5, 119.7, 230.7, 252.0, 343.7 nm, respectively. The morphologies of the TiO₂ film surfaces were evaluated by AFM observations performed by a SHIMADZU SPM-9500J3 instrument. The scanning area of the TiO₂ film surfaces was 1 μm × 1 μm. The static contact angle was used to quantify the wettability of porous TiO₂ films. A goniometer (Minilab, ILMS, France) was operated to determine the static contact angle by dropping a droplet of deionized water in a volume of ca. 1 μl onto the TiO₂ film surface with a micro-syringe. For each TiO₂ film, six individual droplets were correspondingly placed on six different locations.

Hydrophobic polypropylene oxide (PPO) blocks and hydrophilic polyethylene oxide (PEO) blocks coexist in the triblock copolymer F38. Micellar structures are usually formed in solutions by the microphase separation of such amphiphilic copolymers. The cores of the micelles are the aggregated PPO chains, which surrounded by the coronal PEO chains [29]. Upon the addition of titanium precursor, titanium species selectively swells in the hydrophilic PEO chains of the copolymer. The resulted complexes self-assemble into a 'titanotropic' mesophase [24–26], accompanied by the hydrolytic polymerization of the inorganic species. Pores are generated in TiO₂ films after removal of the surfactant F38 upon calcination at a high temperature. Thus, mesostructured TiO₂ may be tuned by varying the weight ratios of triblock copolymer F38.

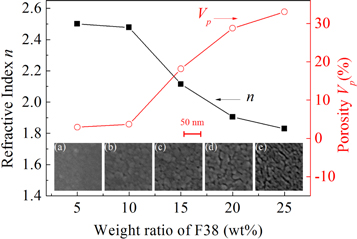

The effect of F38 loading on the refractive indices of the TiO₂ films is depicted in figure 1. For the TiO₂ film fabricated with 5 wt% F38, the refractive index is around 2.50, slightly less than that of nonporous anatase TiO₂ (2.59) [30]. As the amount of F38 increases from 5 to 25 wt%, the monotonic reduction in n of the TiO₂ films from 2.50 to 1.83 reveals the increment in porosity by introducing more F38. The porosities (V_p ) of the porous TiO₂ films can be calculated by the simplified Lorentz-Lorenz formula as follows [31],

$$\begin{eqnarray}&&{V}_{p}=1-\displaystyle \frac{\left({n}_{f}^{2}-1\right)\left({n}_{t}^{2}+2\right)}{\left({n}_{f}^{2}+2\right)\left({n}_{t}^{2}-1\right)},\end{eqnarray} \tag{ 1 }$$

where the subscript f and t represent the TiO₂ film and TiO₂ network skeleton, respectively. In this study, the refractive index of TiO₂ crystals in anatase phase (2.59) is used for the value of n_t in the above equation. The dependence of V_p of the porous TiO₂ films on F38 content is also displayed in figure 1. A lower refractive index corresponds to a higher porosity for the films. It's rational to find that the porosity of the templated porous TiO₂ films rises monotonically from 2.92% to 33.03% with loading sacrificed porogen F38 from 5 to 25 wt%.

Zoom In Zoom Out Reset image size

The pore morphology of the porous TiO₂ films has been demonstrated by the FE-SEM images in the insets of figure 1, which was also shown in our previous paper [27]. No evident pores are present in the TiO₂ film prepared by adding 5 wt% of F38. Isolated, small pores with pore size of 5 ∼ 7 nm are found in the TiO₂ films templated by 10 wt% and 15 wt% F38. Interestingly, the interconnection of mesopores emerges when the additive loading is as high as 20 wt% and worm-shaped pores in length of 30 ∼ 80 nm show up. Higher pore interconnectivity and longer 'worms' (40 ∼ 100 nm in length) are found as further increasing F38 amount to 25 wt%. The dependence of pore structure of the porous silica films on the amount of the same porogen was reported previously, indicative of that the mesopore percolation occurred around the F38 amount of 10 wt% [32].

Figure 2 depicts the surface morphologies of the porous TiO₂ films synthesized by various loadings of F38. The maximum height of the TiO₂ surfaces grows gradually from 2.33 to 3.97 nm with increasing template amount from 5 to 15 wt%, and then decreases to 3.18 nm for the TiO₂ film prepared by adding 20 wt% of F38. As F38 content further increases to 25 wt%, the maximum height distinctly increases to 5.64 nm. The surface roughness of the TiO₂ films is quantified by arithmetic mean roughness (R_a ) and root mean square roughness (RMS), which can be estimated by the following formulas [33, 34].

$$\begin{eqnarray}&&{R}_{a}=\displaystyle \frac{1}{{{\rm{S}}}_{0}}\displaystyle {\int }_{{Y}_{B}}^{{Y}_{T}}\displaystyle {\int }_{{Y}_{L}}^{{Y}_{R}}\left|F\left(X,Y\right)-{{\rm{Z}}}_{0}\right|{\rm{d}}X{\rm{d}}Y\end{eqnarray} \tag{ 2 }$$

$$\begin{eqnarray}&&{\rm{RMS}}=\sqrt{\displaystyle \sum \displaystyle \frac{{\left[F\left(X,Y\right)-{{\rm{Z}}}_{0}\right]}^{2}}{n}}\end{eqnarray} \tag{ 3 }$$

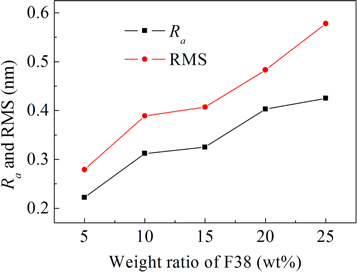

Here S₀ stands for the designated area of the film surface, F (X, Y) represents the height at position (X, Y), and Z₀ denotes the mean value of F (X, Y) over the designated area. Figure 3 displays R_a and RMS of the porous TiO₂ films evaluated in this way from AFM data as a function of F38 loading. As the addition of F38 increases from 5 to 25 wt%, R_a value increases monotonically from ca. 0.22 nm to 0.43 nm, indicating that more and larger pores are generated in the TiO₂ films by adding more F38. The variation of RMS as a function of F38 content has the same trend with that of R_a . RMS grows monotonically from ca. 0.28 to 0.58 nm by loading F38 from 5 to 25 wt%. The AFM observations also indicated the increase of pore size/concentration by introducing more F38. Interestingly, for the films introduced F38 loading greater than 15 wt%, RMS is more dependent on F38 amount. The more significant increase in the RMS value of the TiO₂ films (>15 wt%) can be attributed to the formation of longer interconnected pores with higher porosities. The results agree with those observed by ellipsometry and FE-SEM.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

As is well known that thermodynamically stable micelles can be formed in solutions only when the concentration of the triblock copolymer reaches a certain value, which is named critical micellization concentration, abbreviated as CMC [35]. Below the CMC value, the block copolymers exist as unimers. The CMC value of a block copolymer is directly related to its self-assembly ability in the preparation of porous structures [36]. It is often hard to develop highly ordered porous materials by using copolymers with high CMC as the structural templates. It is found that the CMC value of triblock copolymer F38 in EtOH solution is about 1.46 wt%, equivalent to the titanium sol prepared with 10 wt% of F38, which is revealed by the isolated mesopores in the TiO₂ film. The result is in good accordance with that of TiO₂ powders prepared via the same method, reported in a previous paper [37]. At low concentration of F38 (5 wt%), the self-assembly ability of F38 is too weak to form stable micellar structures in solution. The low porosity of ca. 2.92% is principally resulted from the voids among the TiO₂ grains. When the F38 loading exceeds ca. 10 wt%, stable micelles can be formed in sols, thereby forming small and isolated pores in the TiO₂ films. The threshold of pore percolation in the TiO₂ films is found at F38 ratio of ca. 15 wt%. The random mesopores with higher concentration are connected to each other in the form of 'worms' as F38 loading reaches 20 wt%. The pore interconnectivity is enhanced and worm-like pores are further elongated by introducing F38 amount to 25 wt%.

For a liquid or solid, the surface atoms or molecules are more energetic than its internal ones, which leads to surface free energy or surface tension, thereby reaching a steady state with relatively lower energy [38]. For a water droplet staying on a solid surface, its shape is determined by the pulling force of the droplet at the three-phase contact line on the solid plane, where the interfaces of solid/liquid, gas/solid, and liquid/gas meet. If the droplet is small enough, gravity can be neglected. The droplet will be spherically shaped and the gas/liquid interface will contact the solid surface at an angle θ, which is universally recognized as the inherent contact angle of the droplet. The shape of the droplet on a solid in equilibrium state is determined by the following formula proposed by Thomas Young [39],

$$\begin{eqnarray}&&{\gamma }_{sg}-{\gamma }_{sl}={\gamma }_{lg}\,\cos \,\theta ,\end{eqnarray} \tag{ 4 }$$

where the subscript s, g, and l represent solid phase, gas phase, and liquid phase, respectively. The symbol γ represents the surface tension between the two of three phases expressed by the subscripts. The Young's formula is the basic law for all the wetting phenomena. For the contact angle less than 90°, the surface is generally considered to be hydrophilic, while the surface with contact angle greater than 90° is conventionally regarded as being hydrophobic.

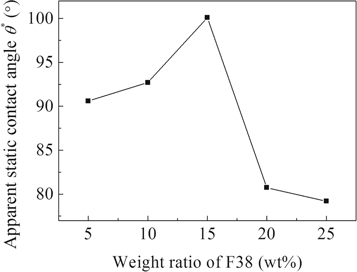

Figure 4 shows the apparent static contact angle (θ*) of the porous TiO₂ films prepared by varying F38 loading. For the film prepared with adding 5 wt% F38, θ* is around 90.6°, indicative of a hydrophobic surface. The wettability of the film directed by 10 wt% of F38 also corresponds to hydrophobicity for θ* ≈ 92.7°. The apparent contact angle increases to ca. 100.1° as the weight ratio of F38 rises to 15 wt%. A gradient of surface wettability with enhanced hydrophobicity is fabricated by changing template content from 5 to 15 wt%. However, as the loading amount of F38 reaches 20 wt%, θ* drops to ca. 80.7°, showing a hydrophilic surface. The further reduction in θ* to about 79.2° is observed as the loading of F38 rises to 25 wt%. The surface wettability of the TiO₂ films transforms from hydrophobicity to hydrophilicity as the copolymer content increases from 15 to 20 wt%.

Zoom In Zoom Out Reset image size

The Young's formula is valid for ideal, smooth and homogeneous surfaces. In practice, the surfaces of the porous TiO₂ films are rough and heterogeneous, therefore the basic effects of surface structures should be taken into account. The surface roughness dependent wettability is usually formulated by the Wenzel's equation [40],

$$\begin{eqnarray}&&\cos \,\theta * =r\,\cos \,\theta ,\end{eqnarray} \tag{ 5 }$$

where r is roughness factor, a non-dimensional parameter, defined as the ratio of actual surface area of a rough surface to its planar area. The Wenzel's equation shows that θ* of a droplet on a rough surface is closely correlated with θ on an ideal one. Because of the increment in the actual surface area of the rough surface, r is greater than 1. According to the Wenzel's formula, on one hand, for a hydrophobic surface, θ > 90°, thereby θ* > θ. On the other hand, for a hydrophilic one, θ < 90°, thus θ^* < θ. The Wenzel's equation demonstrates that the hydrophobicity of a rough hydrophobic solid is enhanced by roughness factor, so is the hydrophilicity of a rough hydrophilic surface. Thus, the apparent contact angle can be tuned by varying surface roughness of the solid surface. Recently, it has been confirmed that the surface roughness of the solid can greatly enhance the wettability even without considering the chemical composition [38].

In order to elucidate the dependence of wettability on surface roughness of the solid, a simple regular rough surface of TiO₂ film is schematically illustrated in figure 5(a). Parameter a is the pore dimension parallel to the film surface. The pore dimension perpendicular to the film denotes pore height (h), and the space between two mesopores is c. Therefore, the roughness factor r of the rough surface can be expressed as

$$\begin{eqnarray}&&r=\displaystyle \frac{{\rm{actual}}\,{\rm{surface}}\,{\rm{area}}}{{\rm{planar}}\,{\rm{area}}}=1+\displaystyle \frac{4ah}{{\left(a+c\right)}^{2}}\end{eqnarray} \tag{ 6 }$$

The area of a selected specified region (a + c)² is constant for all films. From the above equation, the roughness factor of the porous TiO₂ films depends on their pore size a and pore height h. The average pore size a varies little in TiO₂ films prepared with 10 wt% and 15 wt% F38. Thus, the change of r is mainly attributed to h, and r can be supposed to be proportional to h.

$$\begin{eqnarray}&&r\propto h\end{eqnarray} \tag{ 7 }$$

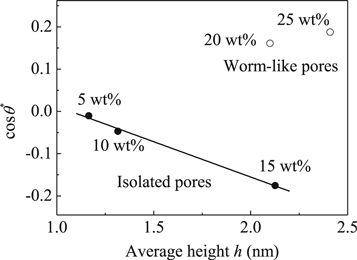

cos θ^* as a function of the average pore height (calculated by AFM measurements) of the porous TiO₂ films by loading various amount of F38 is plotted in figure 6. The experimental values are well located on a straight fitting-line with the slope of k = −0.167 ± 0.011 for the TiO₂ films by introducing lower amount of F38 (≤15 wt%). As the copolymer amount increases from 5 to 15 wt%, cosθ^* decreases linearly from ca. −0.010 to −0.175 with the increase of h from 1.165 to 2.126 nm. The Wenzel's equation predicts that cos θ^* decreases with increasing r for θ > 90°, which is qualitative consistent with the experimental data in figure 6, for the TiO₂ films directed by lower content of template (≤15 wt%). The enhancement of hydrophobicity is resulted from the introduction of greater roughness factor, accompanied by the increase of total surface/interface energy owing to the enlargement of the actual area [33]. However, the tendency of cosθ* on h is unable to continue for the films templated by F38 loading higher than 15 wt%, showing significant deviations from the linear relationship. On the contrary, cos θ* increases remarkably from ca. −0.175 to 0.161 as the weight ratio of F38 increases from 15 to 20 wt%, indicating that the wetting property of the TiO₂ films transforms from hydrophobicity to hydrophilicity.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

One can conclude that the wetting behavior of water on the TiO₂ film surfaces depends not only on surface roughness but also on pore morphology based on the Wenzel's theory and experimental results. On one hand, for the rough surfaces with similar pore morphology, the surface roughness plays a significant role in surface wettability. The aspect ratio of a pore here is used to describe its pore morphology semiquantitatively, which is defined as the ratio of pore size to pore height (a/h). For the hydrophobic TiO₂ films with isolated pores (≤15 wt%), as described in figure 5(b), a/h is in the range of 2.25 ∼ 6.00, where the experimental results are in good consistent with the rule of Wenzel's equation even for the randomly rough surfaces. Thus, for the TiO₂ films consisted of isolated pores with lower aspect ratios, the hydrophobicity is enhanced by the increase of roughness factor.

On the other hand, when the pore morphology changes significantly, the surface wettability is affected predominantly by pore morphology. The variation of h is little (from 2.13 to 2.41 nm) as copolymer loading increases from 15 to 25 wt%, wheareas a increases significantly from several nanometers to several tens nanometers because of the enhancement in the interconnectivity of pores, resulting in the change of pore morphologys from isolated pores to interconnected worm-like pores. The aspect ratio ranges from a few to several tens by introducing copolymer F38 from 15 to 25 wt%. The result is quite in accord with the effect of template F38 loading on the pore size of mesoporous silica films, as reported in a previous paper [32], showing that the development of pores is primarily through one-dimensional prolongation instead of three-dimensional expansion of pore size. For longer worm-like tuble pores (>15 wt%), r is mainly influenced by the elongated pore dimension a. According to equation (6), with the increase of a, the hydrophobicity based on the Wenzel's equation is supposed to be further increased correspondingly as r increases. However, it is not the case for the films with the aspect ratios of pores as high as tens. Despite of much greater r of the films with more F38, the films with longer worm-like pores show amazingly obvious hydrophilicity instead of hydrophobicity, as depicted in figure 5(c). It is worth noting that the Wenzel's equation is also suitable for the hydrophilic films with similar worm-like pores. In other words, the hydrophilicity (from 80.7° to 79.2°) is improved with the increase of roughness factor by adding F38 amount from 20 to 25 wt%.

Generally speaking, owing to the heterogeneity of a rough surface, the liquid often needs to surmount an energy barrier during spreading, and will remain metastable rather than stable when the vibration energy is less than the barrier [33]. The wettability might transform because of the probable coexistence of homogeneous and inhomogeneous wetting states on the same surface where energy barriers are present, resulting in very diffident apparent contact angles. Furthermore, almost all theoretical models on rough surfaces are in a symmetric state simplified as a well-organized patterned solid. However, the surfaces in practice are much more complicated in disordered states. In addition, capillary condensation of water in the well-interconnected pores might be responsible for the hydrophilicity of the surfaces for the films templated by higher loading of F38 (>15 wt%). The capillary enhancement of a hydrophilic surface can be expressed by the Young-Laplace equation [12]:

$$\begin{eqnarray}&&{P}_{LP}=-2\gamma \,\cos \,\theta * /R\end{eqnarray} \tag{ 8 }$$

where P_LP is the Laplace pressure in a pore channel, γ is the surface tension, and R is the radius of the channel. From equation (8), P_LP is governed by the contact angle and the channel radius. For the hydrophilic film surfaces with worm-like pore channels, P_LP is negative, so it acts as a driving force when water is introduced. Hence, from the perspective of structure and application, more attention should be paid to the mechanism on such disordered surfaces in future to better realize industrial application, for instance, in precisely mimicking natural superhydrophobic surfaces for self-cleaning.
