Plasma heating and generation of energetic D ions with the 3-ion ICRF + NBI scenario in mixed H-D plasmas at JET-ILW

Auxiliary heating systems are essential for a fusion reactor to reach high ion temperatures for thermonuclear fusion. Radio frequency plasma heating with waves in the ion cyclotron range of frequencies (ICRF) is a well-established technique that has been successfully applied in present-day tokamaks and is foreseen for ITER [1–4]. ICRF heating relies on the excitation of fast magnetosonic waves (FW) that can undergo a large variety of collisionless interactions in the plasma, both with ions and electrons. Matching locally the Doppler-shifted wave frequency with the particle's cyclotron frequency or its harmonics is one of the pre-requisites for strong wave-particle interactions to occur

$$\begin{equation}\omega = n{\omega _{cs}} + {k_{||}}{{\rm v}_{||,s}}\left( {n = {\text{ }}0,{\text{ }} \pm 1,{\text{ }} \pm 2,{\text{ }} \ldots } \right).\end{equation} \tag{ 1 }$$

Here, ω is the angular wave frequency, ω_cs = q_sB/m_s is the local cyclotron frequency of particles with charge q_s and mass m_s, k_|| and v_||,s are the components of the wave number and particle velocity parallel to the confining magnetic field. In turn, equation (1) determines the parallel velocities for resonant ions

$$\begin{equation}{{\rm v}_{||,i}} = {\text{ }}\left( {\omega {\text{ }}-{\text{ }}n{\omega _{ci}}} \right)/{k_{||}}.\end{equation} \tag{ 2 }$$

For thermal ions with low v_||, this condition can be locally fulfilled close to the ion cyclotron resonance layers, where ω ≈ nω_ci.

The condition given by equation (2) alone is not sufficient for efficient wave absorption by the resonant ions. As the electric field of excited fast waves can be decomposed as a sum of two components, E₊ (left-hand polarized, rotating in the direction of the ions) and E₋ (right-hand polarized, rotating in the opposite direction), it is important to note that thermal ions (as well as moderately energetic ions with energies in the range of a few hundred keV) interact mainly with the left-hand polarized RF component E₊ [5]. The ratio E₊/E₋ is a local quantity in a plasma, and its spatial profile is primarily determined by the chosen plasma composition, namely the number of ion species and their concentrations, X_i = n_i/n_e (n_e is electron density and n_i is the ion density). To illustrate the importance of local wave polarization, we note that fundamental (n = 1) ICRF heating of single-ion plasmas is inefficient due to the fact that the E₊ component almost vanishes at ω ≈ ω_ci [6].

A review of traditionally used ICRF scenarios is given, e.g. in [5–7]. Out of these, minority heating became the workhorse scenarios for ICRF heating in fusion research. In short, these scenarios can be realized in plasmas, including at least two ion populations with different ω_ci. The concentration of one of the ion species (the so-called minority species) has to be rather small to guarantee efficient wave damping in the region of its ion cyclotron resonance (n = 1). The operational range for this efficient ICRF scenario is usually limited by minority concentrations of a few %. Under these conditions, the ion-ion hybrid (IIH) pair, which is characterized by a local enhancement of the E₊ component, is located close to the cyclotron resonance of the minority ions and facilitates damping of fast waves by minority ions. At higher minority concentrations, the efficiency of minority ion damping is reduced and ICRF heating via mode conversion becomes dominant [8, 9]. This is because the ion-ion hybrid layer moves away from the minority cyclotron resonance layer and thermal ions can no longer fulfil equation (2) in the region with enhanced E₊ polarization. In this case, the incoming fast wave usually undergoes a transformation into the short wavelength ion Bernstein wave (IBW). Then, in a second step, the mode converted IBWs are absorbed by the electrons in the plasma, allowing for a direct electron heating without introducing significant populations of ICRF-accelerated fast ions [10]. Outside the equatorial plane, the incoming fast waves can excite short wavelength ion cyclotron waves (ICW), in particular in smaller size tokamaks. In Alcator C-Mod experiments reported in [11], mode conversion heating with ICWs resulted in an efficient toroidal and poloidal flow generation, as well as ion heating. However, while mode conversion heating features a number of attractive applications in present-day tokamaks, its application in larger machines as ITER can be challenging due to generally low single-pass wave damping. This results from difficulties for the incoming fast waves (excited by the low magnetic field side ICRF antennas) to tunnel through the ion-ion hybrid evanescence layer and unwanted strong fast wave reflections at the IIH cutoff before reaching the mode conversion layer.

Recently, novel '3-ion' ICRF scenarios have been proposed and successfully tested experimentally as a solution to achieve dominant ion absorption in such mixed plasmas instead of mode conversion heating [12, 13]. This technique relies on extending the plasma composition beyond two thermal ion species only and providing an additional ('third') population of ions that fulfill equation (2) and resonantly absorb RF power close to the ion-ion hybrid layer(s) in mixed plasmas. Two possibilities to do so follow immediately from equation (1).

As a first option, one can use ions with an intermediate charge-to-mass ratio as a resonant component, (Z/A)₂ < (Z/A)₃ < (Z/A)₁, e.g. ³He ions for heating H-D and H-⁴He mixed plasmas, confirmed in 3-ion ICRF experiments on JET, Alcator C-Mod and AUG tokamaks [14, 15]. These experiments demonstrated the high-efficiency of ICRF for plasma heating, not only at ³He concentrations of ∼1–2%, but equally at much lower ³He concentrations of a few per mille (‰) only. 3-ion ICRF scenarios also allow the use of impurity ions to optimize the deposition of ICRF power in fusion plasmas. As an example, intrinsic ⁹Be impurities have been predicted to absorb efficiently ICRF power in D-T plasmas of JET-ILW and ITER, resulting in strong bulk ion heating [16].

The second option to realize the 3-ion ICRF scenario in mixed plasmas (i.e. achieving dominant fast wave absorption by ions rather than mode conversion heating) relies on using fast ions with large parallel velocities as a resonant 'third' population [13, 17]. Fast ions with a sufficiently large Doppler shift, k_||v_|| can resonate in the vicinity of the ion-ion hybrid layer through the second term in equation (1). In this case, the (Z/A) value of the resonant fast ions does not necessarily have to differ from that of the non-resonant ions, (Z/A)₁ and (Z/A)₂. A natural choice for the realization of the Doppler-shifted version of the 3-ion ICRF scenario are fast ions injected by neutral beam injection (NBI). Under these conditions, we have effectively a 2-stage particle accelerator: fast ions from the NBI system (stage #1) efficiently absorb RF power at the ion-ion hybrid layer and are further accelerated to high energies by the injected fast waves by ICRF (stage #2). Note that the same physics applies to energetic ions that are products of fusion reactions. Absorption of ICRF power by alpha particles in D-T plasmas is well known and is usually considered as a parasitic effect to be avoided.

A set of dedicated 3-ion ICRF + NBI experiments was performed in mixed H-D [13] (and very recently in D-³He) plasmas in JET-ILW proving the high-efficiency of plasma heating and fast-ion generation with this novel scenario. The successful realization of this scenario extends the application of ICRF beyond heating of mixed plasmas only. In particular, this scenario is a useful tool for the following studies at JET:

• maximizing beam-target fusion, in particular in D-³He and D-T plasmas;
• generating fast ions and studying fast-ion driven MHD instabilities, even at rather high plasma densities;
• studying energy transport at ITER-relevant heating conditions, when electron heating from MeV-range fast ions dominates.

This paper is organized as follows. The details of the experimental conditions in JET, in particular the selected plasma composition in mixed H-D plasmas and sensitivity to the choice of the NBI injectors are presented in section 2. Observations with a range of fast-ion diagnostics are described in section 3, confirming the acceleration of fast D-NBI ions to higher energies with ICRF waves. An outlook of possible applications of the 3-ion ICRF scenarios, including a recent example of its use in mixed D-³He plasmas in JET and promising scenarios for D-T plasmas, are given in section 4. Finally, summary and conclusions are presented in section 5.

To demonstrate experimentally ICRF absorption by fast beam particles in the vicinity of the ion-ion hybrid layer, a number of dedicated pulses were performed in the past Hydrogen campaign in JET-ILW. Figure 1 shows an overview of JET pulse #91256, first discussed in [13] and later also in [15, 17–19], which is the focus of the analysis reported in this paper.

Zoom In Zoom Out Reset image size

The discharge has three different phases of applied ICRF-to-NBI power ratio, P_ICRF/P_NBI. The pulse starts with an NBI-only phase (P_NBI ≈ 3.5 MW; t = 7.5−9.0 s), followed by two phases of combined ICRF + NBI heating with P_ICRF/P_NBI ≈ 0.7 (P_ICRF ≈ 2.5 MW, P_NBI ≈ 3.5 MW) and P_ICRF/P_NBI ≈ 0.3 (P_ICRF ≈ 1.3 MW, P_NBI ≈ 4.9 MW). Tangential NBI injectors (λ = v_||/v  ≈ 0.62) with a maximum injection energy of 100 keV were used. Up to 2.5 MW of ICRF power was delivered at a frequency f  ≈ 25 MHz, using dipole phasing (symmetric k_||-spectrum with dominant n_tor = ± 27 [8], k_|| ≈ n_tor/R). As can be seen in figure 1, the central electron temperature, the period of the sawtooth, the neutron rate and gamma-ray emission are strongly increased when ICRF power was applied on top of the NBI power. Moreover, the increase also depends on the ratio P_ICRF/P_NBI.

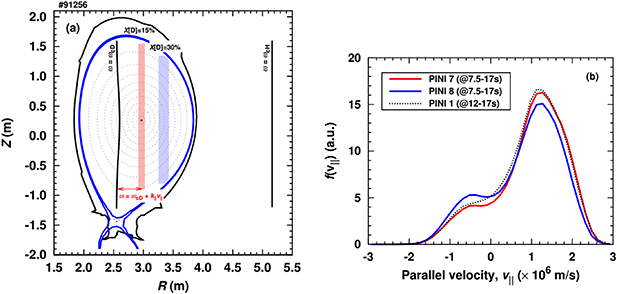

The location of the ion cyclotron resonances for thermal D and H ions in pulse #91256 is shown in figure 2(a): R_IC(D) ≈ 2.6 m (off-axis at the high magnetic field side) and R_IC(H) ≈ 5.2 m (outside the plasma). The choice of the off-axis location of the D cyclotron resonance is intentional. Indeed, as follows from the discussion in the introduction of the paper, wave absorption and plasma heating are expected to have a maximum in the vicinity of the ion-ion hybrid pair, where the E₊ polarization is particularly favorable for the damping of fast waves on ions. Figure 2(a) also shows the computed location of the IIH pair at X[D] = 15% and 30%, assuming n_tor = 27 and the presence of 0.5% of intrinsic beryllium impurities in the plasma. We note that the position of the ion-ion hybrid layer in H-D plasmas can be approximated as R_IIH ≈  R_IC(D) × (1 + X[D]). As a result, deuterium concentrations of 10%–15% are sufficient to position the ion-ion hybrid layer close to the plasma core.

Zoom In Zoom Out Reset image size

Mixed H-D plasmas with different isotopic compositions can be used to realize the 3-ion D-(D_NBI)-H scenario. Yet there is an upper boundary on the concentration of D ions for this heating scenario to be efficient, X[D]_max that is determined by the selected NBI and ICRF settings. First, we note the expression for the Doppler-shift of fast ions

$$\begin{equation}\delta {R_{\rm fast}} = {n_{\rm tor}}{{\rm v}_{||,\rm {fast}}}/\omega ,\end{equation} \tag{ 3 }$$

where we assumed k_|| = n_tor/R. A simple estimate for the maximum parallel velocities in the slowing-down distribution of the injected D-NBI ions yields ${\rm{v}}_{{\rm{||, fast}}}^{{\rm{(max)}}}{\rm{ }} \approx {\rm{ 2 \times 1}}{{\rm{0}}^{\rm{6}}}\ {\rm{ m }}\ {{\rm{s}}^{ - 1}}$ (E_NBI = 100 keV, λ ≈ 0.62), which is consistent with the results of the ASCOT modeling [20] shown in figure 2(b). Taking into account that ICRF power was coupled at f ≈ 25 MHz using dipole antenna phasing with a characteristic n_tor ≈ 27, equation (3) implies that the fastest D-NBI ions have a Doppler-shift ${{\delta R}}_{{\rm{fast}}}^{\rm{(max)}}{\rm{ }} \approx {\rm{ 0}}{\rm{.35 - 0}}{\rm {.4\ m}}$. In mixed H-D plasmas, the latter quantity defines X[D]_max as follows

$$\begin{equation}X{\left[ D \right]_{{\rm{max}}}} \approx p/\left( {1 - {\rm{ }}p} \right),{{p = \delta R}}_{{\rm{fast}}}^{{\rm{(max)}}}{\rm{/}}{{{R}}_{\rm{0}}}.\end{equation} \tag{ 4 }$$

This gives X[D]_max ≈ 15% for the experimental conditions adapted in #91256.

Figure 2(a) also shows the computed location of the ion-ion hybrid pair at higher concentration of D ions, X[D] = 30%. In this case R_IIH ≈ 3.3−3.4 m, meaning that fast ions with a Doppler shift of about 0.7–0.8 m are required to resonate at the IIH layer. For the ICRF settings used in #91256, this corresponds to the parallel fast-ion velocities v_|| ≈ 4.1–4.7 × 10⁶ m s⁻¹. Fast ions with such large v_|| are virtually absent in the slowing-down distribution of injected NBI ions (figure 2(b)) and, thus, the 3-ion scenario is not efficient under these conditions. In the absence of resonant ions fulfilling equation (1) at the ion-ion hybrid layer, the fast wave undergoes the transformation into the short wavelength modes and the traditional mode conversion heating is recovered. It is still possible to set up the 3-ion scenario in mixed H-D plasmas at larger D concentrations, but this requires higher NBI injection energies and/or ICRF operation with larger parallel wavenumbers, k_||.

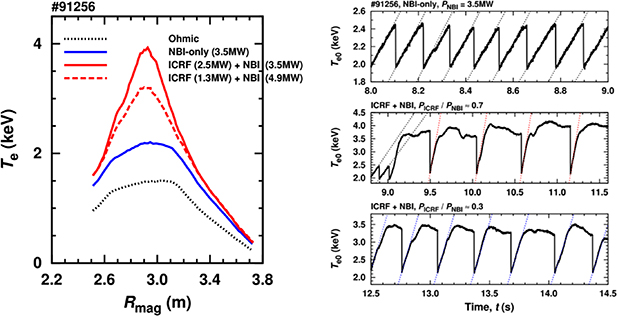

A first proof for core RF power deposition in #91256 is the response of the central electron temperature to the applied ICRF power. We complement this result (figure 1(b)) with T_e-profiles corresponding to different heating phases of the pulse. Figure 3(a) shows that the NBI-only heating phase (with a rather broad deposition of NBI heating power) is characterized by a fairly flat T_e-profile. Higher values for T_e(0) and more peaked T_e-profiles are observed during the combined ICRF + NBI heating phases. The increase of the central electron temperature per MW of injected auxiliary heating power is significantly higher for the heating phase with combined ICRF + NBI heating, ΔT_e(0)/ΔP_ICRF ≈ 0.6 keV MW⁻¹, as compared to the NBI-only phase, ΔT_e(0)/ΔP_NBI ≈ 0.2 keV MW⁻¹.

Zoom In Zoom Out Reset image size

We note that the T_e-analysis alone does not allow to conclude whether the 3-ion ICRF scenario is the dominant channel of RF power deposition in #91256. Indeed, core electron heating can be equally achieved with on-axis mode conversion heating in JET, e.g. [10]. However, as discussed in [10, 21], short-wavelength modes, such as ion Bernstein waves, are characterized by much larger perpendicular wavenumbers than fast waves (${{{k}}_{ \bot {\text{,IBW}}}}\, \gg {{{k}}_{ \bot {\text{,FW}}}}$), and, as a result, interaction between ions and mode converted waves cannot lead to the generation of fast-ion populations. Thus, the presence or absence of fast D ions with energies significantly above NBI injection energies demonstrates whether the 3-ion scenario or electron mode conversion ICRF heating dominates.

A first indication for the presence of fast ions with energies above E_NBI are the long sawtooth periods in #91256 during the phases with ICRF. While the 3.5 MW NBI-only phase is characterized by an averaged sawtooth period T_saw ≈ 110 ms, it increases to T_saw ≈ 550 ms in the combined ICRF + NBI phase with 2.5 MW of ICRF power (figure 3(b)). Efficient generation of high-energy D ions with ICRF is further confirmed by the observation of a strongly increased neutron rate (by a factor of 10–15), as shown in figure 1(d), and an increased number of gamma-ray counts with E_γ = 3.37 MeV (figure 1(e)). The observed gammas originate from one of the branches of the nuclear reactions between fast D ions and intrinsic ⁹Be impurities. Given the fact that this nuclear reaction has an effective energy threshold E_D > 0.5 MeV [22], we can conclude that an acceleration of fast D ions with ICRF waves must have taken place. In turn, this implies that the mode conversion heating is not effective for the adapted scenario and the energetic D ions are generated as a result of their interaction with fast waves. The determining role of ICRF for accelerating D ions to high energies is further illustrated in the next phase of #91256 with P_ICRF/P_NBI ≈ 0.3 (P_ICRF ≈ 1.3 MW, P_NBI ≈ 4.9 MW). Although the total auxiliary heating power (ICRF + NBI) was approximately the same as in the earlier phase with P_ICRF/P_NBI ≈ 0.7, we note shorter sawtooth periods (T_saw ≈ 300 ms) and a reduced number of gamma-ray counts and neutron rate.

In the short phase following a sawtooth crash, the central electron temperature recovers and linearly increases in time. We take the post-sawtooth T_e(0) recovery rate, dT_e(0)/dt, as a figure-of-merit to characterize electron heating power densities in the plasma core [23]. As can be seen in figure 3(b), this quantity is significantly higher during the combined ICRF + NBI heating phases (∼20 keV s⁻¹ at P_ICRF ≈ 2.5 MW and ∼11 keV s⁻¹ at P_ICRF ≈ 1.3 MW), as compared to the NBI-only phase (∼5 keV s⁻¹). In the next section of the paper, we will show the detailed fast-ion measurements for #91256, confirming that the fast D tail extends to the energies of ∼1.5 MeV. Note that the achieved fast-ion energies are significantly higher than the critical energy E_crit(D) ≈ 28T_e, and collisional electron heating from fast ions dominates. Thus, the comparison with dT_e(0)/dt rates also confirms that ICRF is the dominant source of electron heating in the plasma core.

From the observations of the neutron rate, sawtooth stabilization and gamma-ray counts, shown in figure 1, it is clear that the ratio P_ICRF/P_NBI can be used as an actuator to control the achieved fast-ion energies with this ICRF + NBI synergetic scenario. This is further supported by PION modeling of #91256, as reported in [17]. It is important to emphasize that the optimal values for P_ICRF/P_NBI are different for the D-D, D-³He and D-T fusion reactions and are determined by the energy dependencies of the fusion cross-sections. While higher values of P_ICRF/P_NBI are beneficial to generate MeV-range D ions and maximize the D-D neutron rate, the optimal energies of fast D and T ions are in the range ∼150–200 keV for the D-T fusion reaction. The possibility to tailor the fast-ion energies is one of the advantages of this novel heating scenario.

The NBI system at JET consists of two neutral beam injector boxes, each equipped with eight positive ion neutral injectors (PINIs). Four PINIs in each box (#1, #2, #7, #8) are grouped into a 'tangential' bank and four in a 'normal' bank (#3, #4, #5, #6) [24]. Note that neither of the injectors are actually fully normal nor fully tangential to the magnetic field: fast ions injected by 'normal' PINIs are characterized by lower parallel velocities (characteristic λ ≈ 0.44). Furthermore, depending on the trajectory of NBI injectors through the plasma, JET PINIs are additionally sub-classified as 'on-axis' (#1, #2, #7, #8) and 'off-axis' (#3, #4, #5, #6).

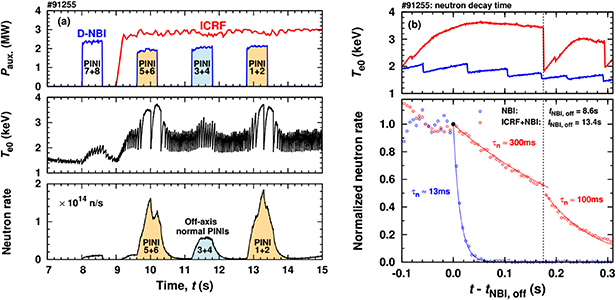

The choice of NBI PINIs, injecting the fast particles that interact with the ICRF waves is another important actuator to control the fast-ion energies with the 3-ion ICRF + NBI scenario. This is clearly illustrated in JET pulse #91255, see figure 4(a). The central T_e(0) and fast-D energies during the combined ICRF + NBI phase (P_ICRF ≈ 3 MW, P_NBI ≈ 2.0–2.1 MW) with off-axis normal PINIs (#3, #4) are clearly lower than for the two other ICRF + NBI phases in #91255 (D/(H + D) ≈ 0.09−0.11). This is corroborated by the changes in the sawtooth period. Note that the NBI acceleration voltage E_NBI = 80 keV in #91255 was lower compared to E_NBI = 100 keV in #91256.

Zoom In Zoom Out Reset image size

It is instructive to compare the neutron decay phases in #91255. We start this analysis for the NBI-only phase (t = 8.0−8.6 s), in which the fast-ion energies are limited by NBI acceleration voltage. After switching off the NBI system, the neutron rate exponentially decreases with a decay time τ_n ≈ 13 ms. The analysis of the corresponding phase after the combined ICRF + NBI heating (t = 12.8−13.4 s) reveals a much longer τ_n ≈ 300 ms (reduced to τ_n ≈ 100 ms after the sawtooth crash at t ≈ 13.58 s). The increased neutron decay time should be partly attributed to higher electron temperatures reached during the combined ICRF + NBI phase. Since ${{\rm{\tau }}_{\rm{S}}}{\rm{ }} \propto {{ T}}_{\rm{e}}^{{\rm{ 3/2}}}$, the effect of a higher T_e on the fast beam ion population should provide an increase of the slowing-down time of the fast D ions by a factor of 3, should the fast-D energies be limited by the NBI acceleration voltage. But, as the observed increase in the neutron decay time is much larger (300 ms vs. 13 ms), this confirms an acceleration of the injected NBI ions to higher energies by the ICRF waves. A detailed analysis of the evolution of the fast-D population during the neutron decay phase is outside the scope of this paper and will be reported elsewhere.

We also note that for the selected mixed H-D plasmas, applying ICRF power alone is not effective either in generating a population of high-energy D ions in the plasma core. Figure 4(a) shows that the averaged sawtooth period during the ICRF-only phase (t = 14.0–15.0 s) is as low as 50 ms, and is even shorter than the corresponding value during the NBI-only phase (T_saw ≈ 80 ms).

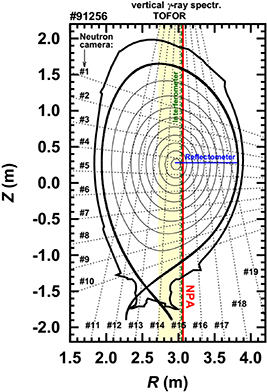

JET is equipped with an enhanced suite of diagnostics for measuring both confined and lost energetic ions [25, 26]. This section summarizes fast-ion measurements in the combined ICRF + NBI heating phase of JET pulse #91256 (t = 9.0–11.6 s), in which a strong increase in the neutron rate was observed when adding P_ICRF = 2.5 MW of ICRF power (see figure 1(d)). In what follows, we show the consistent physical picture that emerged from a range of fast-ion measurements. These allowed us to quantify the energies of the resonant D-NBI ions accelerated by the ICRF waves and validate the physics aspects behind this novel heating scenario. Furthermore, analysis of fast-ion measurements provides information on the spatial localization of the confined energetic D ions in the plasma, confirming their very close localization at the ion-ion hybrid layer as a result of the interaction with ICRF waves. Figure 5 shows the lines-of-sight of different JET fast-ion diagnostics discussed in this section.

Zoom In Zoom Out Reset image size

In mixed H-D plasmas, nearly all neutrons are generated from one of the two channels of the D-D fusion reaction

$$\begin{equation}{\text{D + D}} \to {\;^{\text{3}}}{\text{He }}\left( {{\text{0}}{\text{.82 MeV}}} \right){{ + }}n\ \left( {{\text{2}}{\text{.45 MeV}}} \right).\end{equation} \tag{ 5 }$$

The neutron energy spectrum carries information on the distribution of the thermal and supra-thermal D ions in the plasma. In particular, we note that the neutron spectrum extends to energies well above 2.45 MeV if a significant population of high-energy D ions is present in the plasma. As shown in [27–29], the analysis of the time-of-flight spectrometer TOFOR data has been applied for the interpretation of fast-ion experiments at JET and validating modeling results for the scenarios with 2nd and 3rd harmonic D ICRF heating.

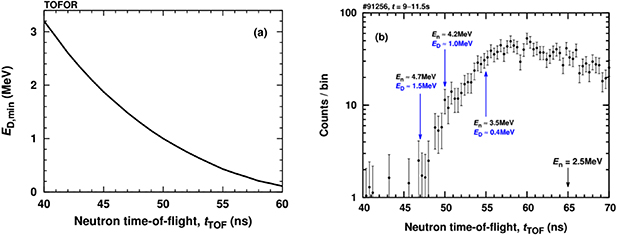

TOFOR measures the time difference of detected neutrons between two sets of scintillators, and, as a first-order approximation, the mean TOFOR time-of-flight, t_TOF and the neutron energy are related as [28]

$$\begin{equation}{{{E}}_{\rm{n}}}{\rm{ }} \approx {\rm{ 2}}{\rm{.9MeV \times (60 ns/}}{{{t}}_{{\rm{TOF}}}}{{\rm{)}}^{\rm{2}}}\end{equation} \tag{ 6 }$$

Thus, shorter times-of-flight correspond to higher neutron energies, and higher neutron energies are a sign of more energetic D ions in the plasma. Based on the knowledge of the response function of TOFOR and from the kinematics of the D-D fusion reactions, a relation between a given time-of-flight and a minimum D energy corresponding to a given t_TOF has been derived [30], see figure 6(a).

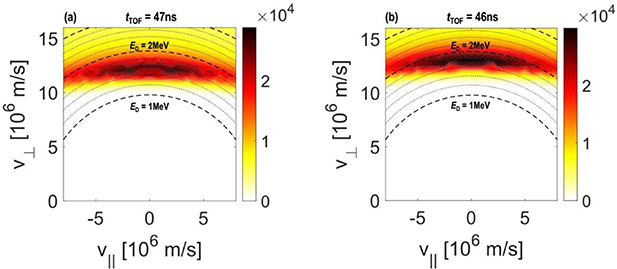

Figure 6(b) shows the TOFOR data for the combined ICRF and NBI heating phase of #91256 with P_ICRF ≈ 2.5 MW and P_NBI ≈ 3.5 MW, in which a strong enhancement of the neutron rate was observed (see figure 1(d)). The TOFOR spectrum extends to times-of-flight down to t_TOF ≈ 47−50 ns, corresponding to neutron energies E_n ≈ 4.2−4.7 MeV. The observation of such high-energy neutrons is direct evidence for the presence of energetic D ions in the plasma with energies E_D ≈ 1.0−1.5 MeV. This is further illustrated in figure 7, showing the sensitivity in velocity space for two TOFOR times-of-flight [31–33]. White regions correspond to domains in the velocity space where the diagnostic is not sensitive, and darker colored regions to increased TOFOR sensitivity. The dashed lines represent deuterium energies of 1 MeV, 2 MeV and 3 MeV, and the dotted lines show 0.2 MeV steps. The clear signal at t_TOF = 47 ns in TOFOR (see figure 6(b)) suggests the presence of deuterium ions with energies of at least ∼1.3 MeV. The absence of a significant TOFOR signal at t_TOF = 46 ns suggests that very few ions reach energies larger than ∼1.5 MeV. We note that in the follow-up heating phase of #91256 with lower ICRF power (P_ICRF ≈ 1.3 MW, P_NBI ≈ 4.9 MW), the TOFOR spectrum extends only to t_TOF ≈ 53−55 ns (E_D ≈ 0.5 MeV). This result is consistent with the earlier discussion presented in section 2 that the developed heating scenario allows also to generate moderately energetic ions, e.g. by decreasing the ratio P_ICRF/P_NBI.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

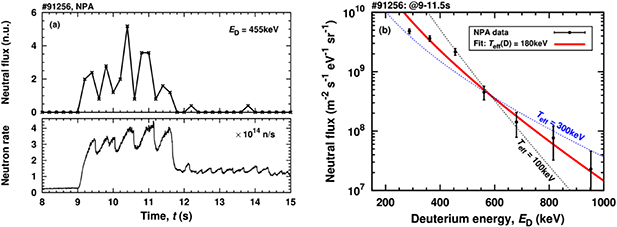

The presence of high-energy D ions is also confirmed by measurements of the neutral particle analyzer (NPA). The high-energy NPA at JET has a vertical line-of-sight that passes through the core region of the plasma (R_los ≈ 3.06 m, see figure 5). In pulse #91256, fast D ions were detected by the NPA system in the energy channels ranging from 287 keV to 952 keV. Figure 8(a) shows the temporal evolution of the neutral D flux at E_D = 455 keV. As expected, NPA measurements of energetic D ions correlate with the observed enhancement of the neutron rate. The measured integrated neutral flux as a function of the deuterium energy for the combined ICRF + NBI phase with P_ICRF = 2.5 MW is shown in figure 8(b). It is clear that NPA measurements also confirm that the deuterium tail extends to the energies of ∼1 MeV.

Zoom In Zoom Out Reset image size

The so-called synthetic NPA diagnostic [34] was applied for inferring the properties of a fast D distribution in JET pulse #91256. In this analysis the fast-ion population was assumed to be Maxwellian, characterized by an effective temperature as a free parameter. The two dotted lines in figure 8(b) show the energy-dependence of the predicted neutral flux for T_eff = 100 keV and T_eff = 300 keV. The assumed T_eff-values result in an under- and overestimation of the fast D population in the high-energy part of the distribution (E_D > 600 keV), respectively. The NPA synthetic modeling results and NPA measurements agree rather well for T_eff = 180 keV (red solid line in figure 8(b)). Note that the inferred value is close to the effective D ion tail temperature predicted by PION and TRANSP simulations [17, 35].

Another independent confirmation for the presence of high-energy D ions generated with ICRF is provided by gamma-ray emission spectroscopy [36]. As a result of nuclear reactions between fast D ions and intrinsic ⁹Be impurities, heavy nuclei in an excited state, ¹⁰Be* and ¹⁰B*, are produced [29]. When a heavy nucleus de-excites, this results in the emission of gamma-ray lines at discrete energies determined by each specific nuclear reaction, allowing an unambiguous identification of the fast-ion species. Lines at energies 2.87 MeV, 3.37 MeV and 3.59 MeV are the strongest peaks in the recorded gamma-ray spectrum in pulse #91256, confirming that the observed gamma-ray emission is originating due to the presence of fast D ions in the plasma. Furthermore, as D + ⁹Be nuclear reactions have an effective energy threshold E_D ≈ 0.5 MeV for their detection at JET [22], the temporal evolution of the number of γ-counts reflects how the number of high-energy D ions changes with varying heating conditions in #91256. The evolution of the γ-counts at E_γ = 3.37 MeV has been earlier shown in figure 1(d). Note that its dynamics is very similar to that of the NPA counts (figure 9(a)). Fast D ions with energies larger than 0.5 MeV are only present in the ICRF + NBI heating phase of #91256 with larger P_ICRF/P_NBI, highlighting the determining role of ICRF for accelerating the D ions to high energies.

Zoom In Zoom Out Reset image size

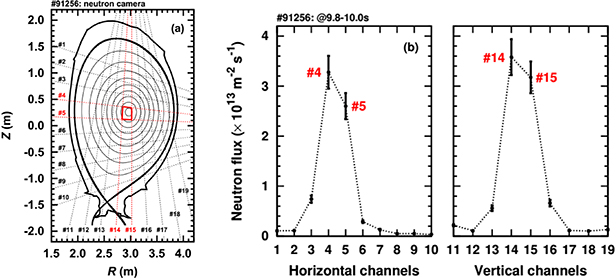

The spatial distribution of fast D ions in the plasma was inferred from the analysis of neutron camera data [37]. This system at JET consists of ten horizontal and nine vertical channels. Figure 9 shows the neutron camera lines-of-sight and the neutron flux per channel, measured during the combined ICRF + NBI heating phase with P_ICRF = 2.5 MW and P_NBI = 3.5 MW (t = 9.8–10.0 s). As follows from the figure, most of the neutrons were measured by the horizontal channels #4 and #5, and the vertical channels #14 and #15. This result proves that using this novel heating scenario RF power was deposited in the plasma core, giving rise to the strongly core-localized fast-ion population.

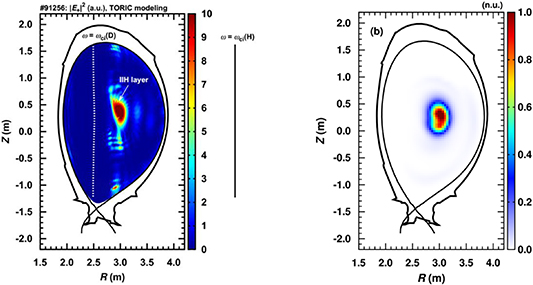

We recall that the strong localization of RF power deposition with the novel 3-ion ICRF + NBI scenario is achieved by making good use of the strong local enhancement of the left-hand RF electric field in the vicinity of the ion-ion hybrid layer. This is illustrated in figure 10(a), showing that the computed spatial profile of |E₊|² is enhanced in the plasma core in the vicinity of the IIH layer in H-D mixed plasmas. The computations were done with the 2D full-wave code TORIC [38, 39], predicting that more than 80% of the incoming RF power is absorbed by fast D-NBI ions for the conditions of pulse #91256. Figure 10 shows good overall agreement between the computed spatial profile of |E₊|² and the reconstructed neutron emission [40], using neutron camera data as input (figure 10(b)). This result highlights that the IIH layer indeed acts as a spatial filter because of the very efficient ion cyclotron wave-particle interaction that takes place in the close vicinity of this layer. Note that the developed 3-ion ICRF + NBI scenario features strong single-pass wave damping and this is particularly important for plasma heating with ICRF waves in fusion devices with a metallic wall.

Zoom In Zoom Out Reset image size

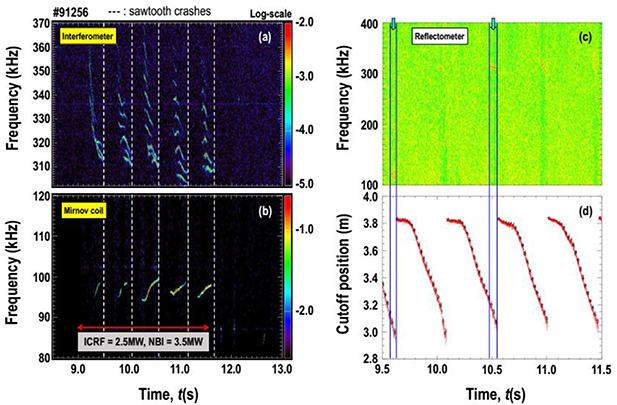

An independent confirmation of the core localization of fast ions in JET pulse #91256 was inferred from the analysis of MHD modes. Figures 11(a) and (b) show spectrograms from core interferometer and Mirnov coil signals, illustrating the presence of fast-ion driven MHD modes at frequencies ∼90–100 kHz and ∼310–360 kHz during the combined ICRF + NBI phase with P_ICRF = 2.5 MW and P_NBI = 3.5 MW. These MHD modes were neither observed during the NBI-only phase of the pulse nor during the combined ICRF + NBI phase with lower P_ICRF/P_NBI (P_ICRF = 1.3 MW and P_NBI = 4.9 MW). The radial localization of the observed MHD modes was determined using the X-mode correlation reflectometer [41]. The system consist of two independent fast-hopping reflectometers using the same waveguides for the mid-plane horizontal line-of-sight (blue solid line in figure 5) [42]. The reflectometer was set to scan radially from the plasma edge to the plasma core with a scan cycle time of about 0.45 s. As follows from figures 11(c) and (d), the observed MHD modes are localized in the plasma core, R < 3.2 m. The radial localization of the MHD modes is consistent with the computed location of the IIH layer in the plasma and the reconstructed neutron emission (figure 10). Note that R ≈ 3.2 m corresponds to the location of the q = 1 surface, as inferred from the analysis of the sawtooth inversion radius.

Zoom In Zoom Out Reset image size

The application of the novel 3-ion scenarios is not limited to mixed H-D plasmas and can be easily extended for its use in different type of plasma mixtures, e.g. D-³He and D-T. As shown in the paper, the scenario allows to vary the fast-ion energy from moderately high to very high, depending on the experimental conditions. Generating a large number of MeV-range ions is of interest not only for studying the physics of fast ions and MHD modes, but also to mimic the heating conditions typical for D-T plasmas in ITER and a fusion reactor. Indeed, these plasmas are characterized by strong electron heating with fusion-born alpha particles as the main heating source. As follows from recent gyrokinetic analysis, alpha particles in ITER can significantly stabilize ITG turbulence and reduce heat transport and energy losses [43]. Thus, the 3-ion ICRF scenarios at JET, tuned for maximizing the generation of fast ions in the plasma core and characterized by strong fast-ion electron heating, provide a test bed to elucidate the role of fast ions on microturbulence and clarify the impact of alpha particles in future ITER plasmas.

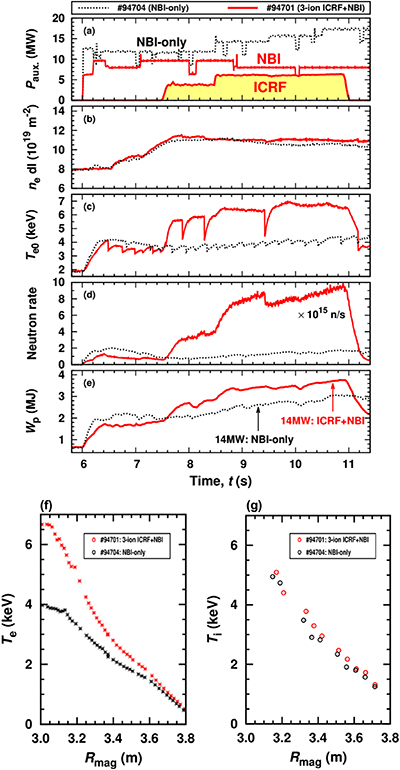

In the context of this application, interesting observations were made in very recent JET experiments, in which the 3-ion ICRF scenario D-(D_NBI)-³He was applied in L-mode D-³He mixed plasmas (n(³He)/n_e  ≈ 20%–25%). Similar to pulse #91256, the experimental conditions were chosen such that the ion-ion hybrid layer is located in the plasma core and to use injected fast D-NBI ions as a resonant ion component to absorb RF power in the vicinity of the IIH layer. Note that the high-efficiency of this heating scenario in D-³He plasmas at n(³He)/n_e ≈ 25% was earlier observed in JET with the carbon wall, discussed in detail in section 4 in [10]. Figure 12 shows an overview of the JET pulse #94701 (3.7 T/2.5 MA), in which 6 MW of ICRF was applied in combination with 8 MW of NBI. The neutron rate was increased from ∼0.6 × 10¹⁵ s⁻¹ in the NBI-only phase to ∼1.0 × 10¹⁶ s⁻¹ in the combined ICRF + NBI phase of the pulse. For comparison, we also illustrate the plasma performance for an NBI-only pulse #94704 (dominant ion heating in the core), which was performed at the same operational conditions (B_t/I_p, n_e, n(³He)/n_e, plasma shape, etc). The stronger T_e peaking and much higher T_e0 and neutron rate in pulse #94701, compared to #94704, are easily understood by the presence of high-energy D ions due to efficient central deposition of ICRF power. However, the comparison of the measured plasma stored energy, T_e and T_i profiles at the same total auxiliary heating power, P_aux. = 14 MW and plasma density, n_e0 ≈ 6 × 10¹⁹ m⁻³, as shown in figures 12(e)–(g), hints at a significantly reduced transport in pulse #94701, characterized by a large fraction of fast ions in the plasma core. The observation T_i/T_e ≈ 1 in JET plasmas, featuring dominant core electron heating from fast ions, is very promising for ITER. The detailed transport analysis of pulse #94701, aiming to understand better the transport in JET plasmas under the ITER-relevant heating conditions and identify possible fast-ion effects on microturbulence, is ongoing and the results will be reported elsewhere. We also note that the developed 3-ion scenario was used as a tool to generate a population of D-³He fusion-born alpha particles (E_α ≈ 3.6 MeV) and to validate successfully updated JET diagnostics for alpha measurements prior to future D-T operations.

Zoom In Zoom Out Reset image size

In D-T plasmas with an isotopic ratio varying between 20%:80% and 80%:20%, different resonant ion components can be used for exploiting the enhancement of |E₊|² at the IIH layers between the cyclotron resonances of thermal D and T ions and the realization of the 3-ion ICRF scenarios. We note that RF power can be partly absorbed by several ion species simultaneously, including in particular ⁹Be impurities, injected fast D-NBI or T-NBI ions, and fusion-born alpha particles. The split of RF power between these species depends on the experimental conditions such as the D:T ratio, ICRF and NBI settings (heating power, ICRF antenna phasing, NBI energies and injectors), plasma density and temperature, concentration of impurity species, the amount of fusion-born alphas, etc.

The 3-ion ICRF scenario with intrinsic ⁹Be impurities to absorb RF power is a promising scenario for maximizing bulk ion heating and thermonuclear neutron rate in both JET and ITER D-T plasmas [44]. This scenario is relevant for heating D:T = 50%–50% plasmas with a particularly attractive feature that the intrinsic level of ⁹Be impurities (∼1%) is sufficient and no extra gas injection is required for the absorption of ICRF waves. The computations predict that these impurities, as a result of their relatively high atomic mass, transfer an even larger fraction of absorbed RF power to bulk D and T ions than ³He minorities [16]. Dedicated experiments to validate bulk ion heating with ⁹Be ICRF in D:T-equivalent T-⁴He mixed plasmas are being prepared for the forthcoming tritium campaign at JET. Note that the ⁹Be ICRF scenario is compatible with additional seeding of Ar and ²²Ne impurities, having very similar charge-to-mass ratio as ⁹Be.

Using T-NBI or D-NBI ions as a resonant ion component for the 3-ion ICRF scenario in D-T plasmas offers the possibility to accelerate fast T or D ions in JET to moderate energies of ∼100–200 keV. At these fast-ion energies the D-T reactivity is maximized and, thus, the developed 3-ion ICRF scenarios can be applied to optimize the D-T fusion rate and achieve high neutron rate at moderate input heating power at JET (in a similar way as in D-³He plasmas, see figure 12). Although the developed technique maximizes beam-target neutron rate in mixed plasmas and thus is not ITER-relevant, it facilitates the design of a dedicated scenario at JET, aiming to demonstrate alpha particle heating in the future D-T campaign.

We finally note that the 3-ion ICRF scenarios are also relevant for ITER during its non-active operations [44, 45]. Reaching H-mode and the development of ELM control techniques are one of the main priorities for ITER during Pre-Fusion Power Operation phases [46]. Recent encouraging experimental results at JET-ILW demonstrated a significant reduction in the H-mode power threshold when a small amount of ⁴He ions, n(⁴He)/n_e ≈ 10%, was added to hydrogen plasmas heated with NBI [47]. This finding motivated the ITER team to consider the use of H-⁴He plasmas to widen the H-mode operational space in predominantly hydrogen plasmas [44]. Equally important, this mix allows also the application of the 3-ion ICRF scenario with the off-axis heating of ³He minority ions, n(³He)/n_e < 1%, as proposed in [45], capable of additionally delivering up to 20 MW of heating power in H + 10% ⁴He plasmas in ITER. This scenario has been recently successfully demonstrated for the first time on the ASDEX Upgrade tokamak [48] and is also foreseen to be studied in future hydrogen campaign on JET.

ICRF heating of mixed or multi-ion plasmas using short wavelength mode converted waves such as IBWs and ICWs avoids generating significant ICRF-accelerated fast-ion populations and features a number of attractive applications in present-day tokamaks [10, 11]. However, application of mode conversion heating in larger machines such as ITER can be challenging due to generally low single-pass wave damping, resulting from strong reflections of the incoming fast waves at the IIH cutoff before reaching the mode conversion layer. The novel 3-ion ICRF scenarios [12–17] offer the possibility to achieve regimes with large single-pass wave damping and dominant ion absorption in such mixed or multi-ion plasmas instead of mode conversion heating. The key idea behind this technique relies on extending the plasma composition beyond two thermal ion species and adapt the plasma composition such that an additional ('third') ion component fulfills the resonant wave-particle interaction condition, equation (1), in the close vicinity of the ion-ion hybrid layer(s) in mixed plasmas. The developed heating scenario features strong localized ion cyclotron damping by the 'third' ion population, even at low concentrations.

Following the originally proposed realization of the 3-ion ICRF scenario in plasmas including three ion species with a different charge-to-mass ratio [12], an alternative realization of this novel heating scenario was proposed in the following paper [13]. This development has increased the flexibility for the application of the novel ICRF scenario and illustrated a novel way (so far, mostly unexploited) for using fast ions, such as NBI ions or fusion products (usually considered as a parasitic effect), to resonate at the IIH layer(s) and absorb ICRF power in mixed plasmas.

The detailed results of JET experiments (pulses #91255 and #91256) reported in this paper confirm good efficiency of heating mixed H-D plasmas with the 3-ion ICRF scenario, using fast NBI ions as a resonant ion population. Acceleration of D-NBI ions to energies of at least 1.3 MeV with ICRF was independently confirmed by a set of fast-ion diagnostics, including NPA, neutron and gamma-ray measurements. Strong core localization of RF power deposition and generation of fast D ions with the 3-ion D-(D_NBI)-H scenario was achieved by adapting the plasma composition to locate the IIH layer in the plasma core and adjusting NBI and ICRF settings to align the Doppler-shifted fundamental resonance of the D-NBI ions with the IIH layer. An independent verification for the core localization of the fast-ion population in the reported experiments was inferred from the analysis of MHD mode localization. The presence of the ICRF-generated supra-thermal D population resulted in a strong enhancement of the D-D neutron rate. In view of possible applications of the developed scenario for maximizing the beam-target neutron rate in D-T plasmas on JET, the possibility to moderate the fast-ion energies, e.g. by decreasing the ratio P_ICRF/P_NBI, was demonstrated.

In JET, the 3-ion ICRF scenarios tuned for an efficient generation of fast ions in the plasma core mimic the heating conditions expected in D-T plasmas in ITER. ITER-relevant heating scenario with strong core electron heating from MeV-range fast ions has been recently established in mixed D-³He plasmas on JET using the 3-ion D-(D_NBI)-³He scenario (see figure 12). These plasmas allow also to benchmark state-of-the-art gyrokinetic simulations to get a better understanding of the role of fast ions on microturbulence and thus help to clarify the possible impact of alpha particles in future ITER plasmas [43]. The detailed transport analysis of D-³He plasmas with a large fraction of fast ions generated by the 3-ion ICRF scenario (#94701) and the comparison with the NBI-only heating (#94704) is ongoing and the results will be reported elsewhere.

As discussed in section 4 of the paper, the 3-ion scenarios extend the use of ICRF in fusion research. Possible applications range from generating fast ions, including D-³He fusion-born alphas, to bulk ion heating in D-T = 50%–50% plasmas. Recent theoretical and experimental developments of the 3-ion ICRF scenarios on JET and AUG tokamaks have benefited strongly from the progress in validating ICRF codes for modeling these scenarios and benchmarking modeling results with fast-ion measurements [17, 35, 49]. While further more detailed analysis work remains to be done, e.g. better understanding the interaction of the fast ions with the plasma, MHD modes and turbulence, the results obtained recently confirm the high efficiency of the novel 3-ion ICRF scenarios for plasma heating and increase our confidence in extrapolating the application of these scenarios to ITER.
